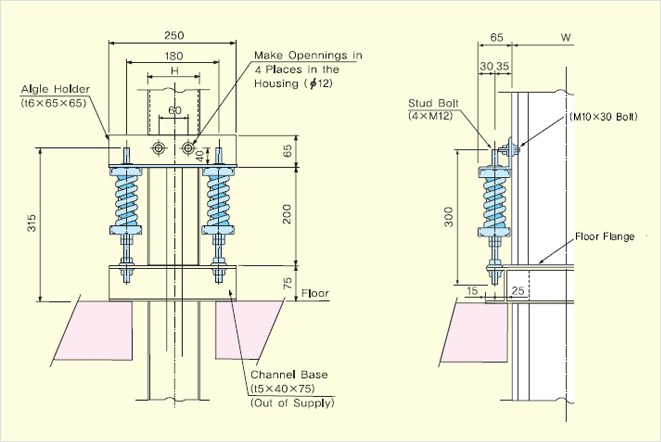

Vertical Spring Hanger(600A~1000A) |
| |
 |
|
| |
|
Vertical Fixed Hanger(600A~1000A) |
| |
 |
| |
1. Base Channel is a size for reference only (manufactured and installed according to field specifications)
2. Refer to the sectional plan for the sizes of W and H. |
|
| |
|
Vertical Spring Hanger(1200A~3500A) |
| |
 |
|
| |
|
Vertical Fixed Hanger(1200A~3500A) |
| |
 |
| |
1. Synchronize the holder to a Busduct before drilling (ф12) and install.
2. Base Channel size is for reference only and is provided at the spot according to installation spot
3. Black coating is available for a Coil Spring
4. Refer to the sectional plan for the sizes of W and H
5. Extra provision of Channel Base is stated in a ordering specifications |
|
| |
|
Vertical Spring Hanger(4000A~6500A) |
| |
 |
|
| |
|

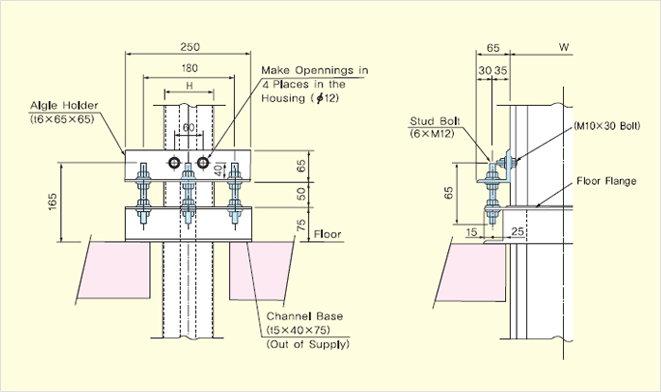

Vertical Fixed Hanger(4000A~6500A) |
| |
 |
| |
1. Synchronize the holder to a Busduct before drilling (ф12) and install.
2. Base Channel size is for reference only and is provided at the spot according to installation spot
3. Black coating is available for a Coil Spring
4. Refer to the sectional plan for the sizes of W and H
5. Extra provision of Channel Base is stated in a ordering specifications |
|
| |
 |
