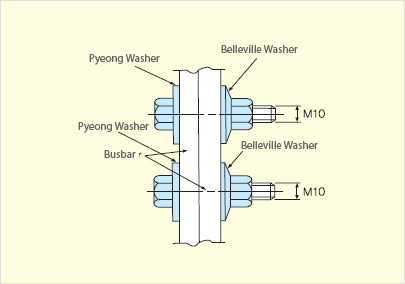

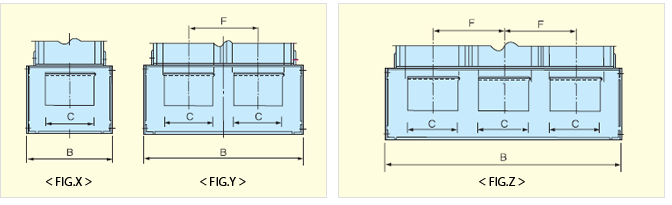

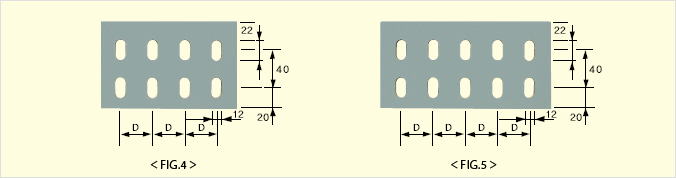

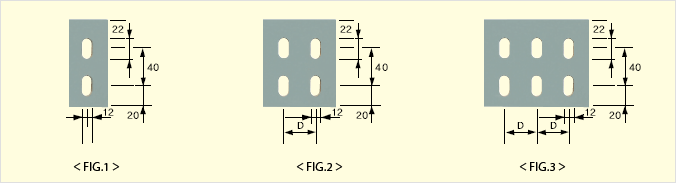

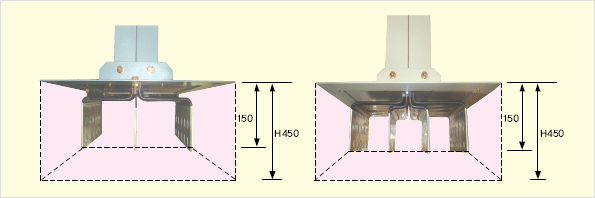

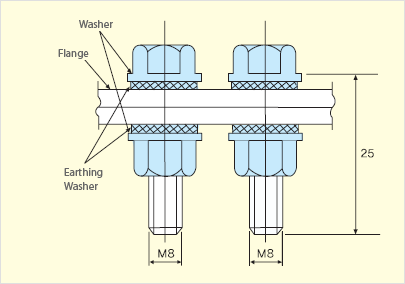

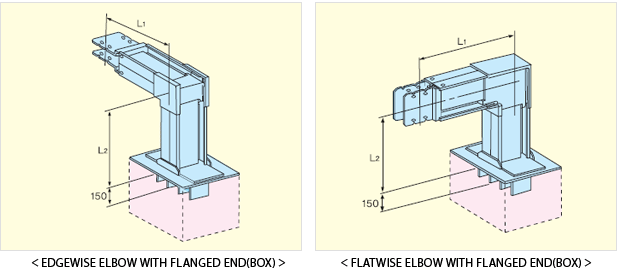

Home > Products       3W / 4W(600A-6500A)       Rated current (A) Fig Dimension(mm) AL Cu A B D 3W 4W - 600 800 1000 1200 1350 1500 1600 2000 - 3500 - 3000 3500 - - 4000 4500 5000 600 800 1000 1200 1350,1500 1600 - 2000 - 2500 3000 3500 - - 4000 4500 5000 5500 6500 X 1 1 2 2 3 3 4 4 5 3 3 4 4 5 3 3 4 4 5 350 450 175 185 210 235 260 285 310 320 375 460 510 560 580 690 660 735 810 840 1005 - - 40 50 40 50 40 45 45 40 50 40 45 45 40 50 40 45 45 Y 410 540 Z   ※ 1. H=450mm can be changed and manufactured according to conditions    2. Please refer to flanged end details for the size C and F    3. The outer size is subject to change when applied to a power generator Detailed drawing of the unit part bus           3W / 4W(600A-6500A)           Elbow with Flanged End(Box)       Rated current (A) Standard length (mm) Minimum length(mm) Edgewise Elbow Flatwise Elbow Edgewise Elbow Flatwise Elbow L1 L2 L1 L2 L1 L2 L1 L2 600 800 1000 1200 1350 430 400 430 400 300 200 340 350 370 380 400 400 410 440 200 210 225 235 250 260 265 295 1500 1600 2000 530 2500 3000 3500 630 600 500 540 600 360 395 450 4000 4500, 5500 730 700 650 670 510 525 5000, 6500 780 750 760 610   Flange connection Bolt     Unit part conductor connection Bolt     ※ When using the Belleville washer used for the unit part, the coloring part (a concave part) should be reached to a conductor. (Caution) Do not work reversely.
