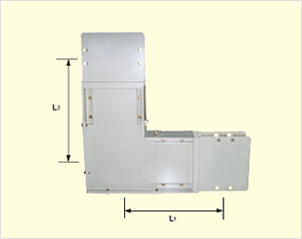

Edgewise Elbow(Horizontal)

Rated current (A)	Standard length L1×L2(mm)	Minimum length L1×L2(mm)
600-6500	430×430	300×300

※ Maximum combined length of an elbow L1+L2=2500mm.

Flatwise Elbow(Vertical)

Rated current (A)	Standard length L1×L2×L3(mm)	Minimum length L1×L2×L3(mm)
600 800 1000 1200 1350	400×400	340×340 350×350 370×370 380×380 400×400
1500 1600 2000	500×500	400×400 410×410 440×440
2500 3000 3500	600×600	500×500 540×540 600×600
4000 4500,5500	700×700	650×650 670×670
5000,6500	750×750	760×760

※ Maximum combined length of an elbow L1+L2=2500mm.

Flatwise Tee Elbow

Rated current (A)	Standard length L1×L2×L3(mm)	Minimum length L1×L2×L3(mm)
600 800 1000 1200 1350 1500 1600 2000	500×500×500	380×380×380 390×390×390 410×410×410 420×420×420 430×430×430 440×440×440 450×450×450 480×480×480
2500 3000 3500	650×650650	540×540×540 580×580×580 630×630×630
4000 4500,5500	700×700×700	690×690×690 710×710×710
5000,6500	800×800×800	790×790×790

※ Maximum combined length of an Tee L1+L2+L3=2500mm.

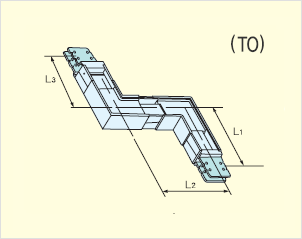

Vertical Offset Elbow

Rated current (A)	Standard length L1×L2(mm)	Minimum length L1×L2(mm)
600 800 1000 1200 1350	400×400×400	340×245×300 350×255×300 370×270×300 380×280×300 400×295×300 400×305×300 410×310×300 440×340×300
1500 1600 2000	500×500×400
2500 3000 3500	600×600×400	500×405×300 540×440×300 600×495×300
4000 4500,5500	700×700×400	650×555×300 670×570×300
5000,6500	780×750×400	760×655×300

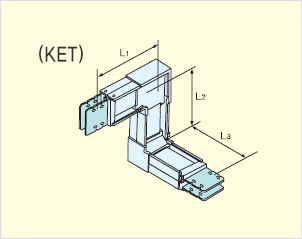

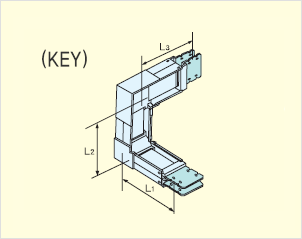

Flatwise Elbow(Vertical)

Rated current (A)	Flatwise Offset : Fig.A
Rated current (A)	Standard length L1×L2×L3(mm)	Minimum length L1×L2×L3(mm)
600 800 1000 1200 1350	400×500×400	340×275×340 350×300×350 370×325×370 380×350×380 400×375×400 400×400×400 410×410×410 440×465×440
1500 1600 2000	500×500×500
2500 3000 3500	600×600×600	500×375×500 540×410×540 600×465×600
4000 4500,5500	700×700×700	650×400×650 670×410×670
5000,6500	780×750×780	760×465×760

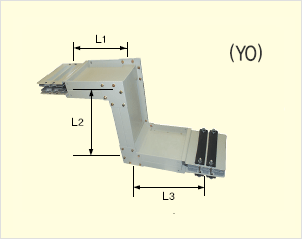

Edgewise Offset Elbow

Rated current (A)	Flatwise Offset : Yo
Rated current (A)	Standard length L1×L2×L3(mm)	Minimum length L1×L2×L3(mm)
600 800 1000 1200 1350 1500 1600 2000 2500 3000 3500 4000 4500, 5500 5000, 6500	400×400×400	300×205×300

※ Maximum combined length of an Combination Elbow
L1×L2×L3=2500mm.
