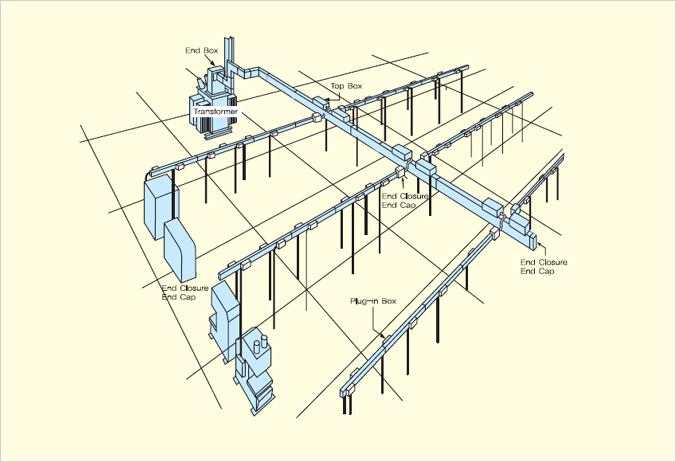

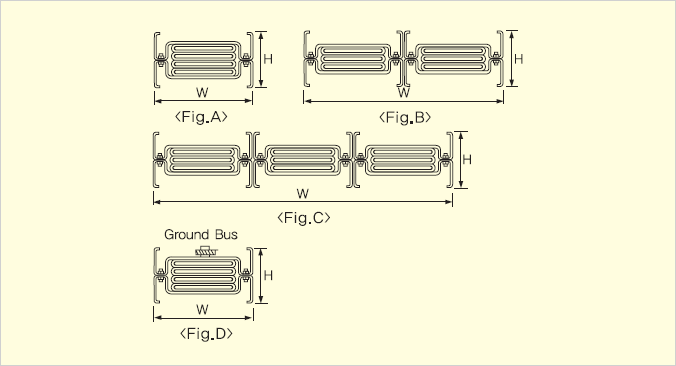

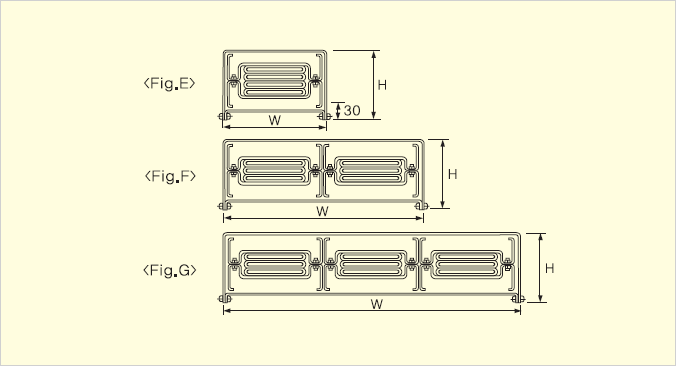

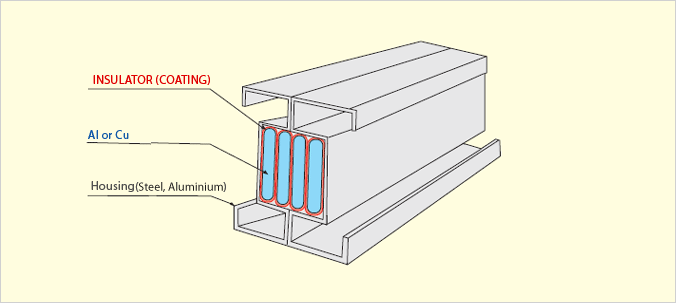

Home > Products > Structure of SH-BUSDUCT   Power distribution structure (Power distribution System) Power distribution system of a high-rise building   Power distribution system of a factory building   Sectional structure   Conductor Al Regulated in KSD6762, purity rate over 99.6%, insulation rate over 61% Cu Regulated in KSD5530, purity rate over 99.9%, insulation rate over 98% Insulator (coating) Over Class B(135), insulator of special incombustible polyvinyl chloride (Superior insulation property) Housing (Steel, Aluminium) Regulated in KSD3528, excellent non-erosion quality using SEHC 1.6t   The structure of a busbar external 1. Ground Busbar (Cu : 3T×25mm) is an External Type / optional (Fig. D) 2. 5500A and 6500A applied to only Cu   external Rated electric current (A) Fig Busbar(mm) 3W 4W(Full Neutral) W(mm) H(mm) Weight (kg/m) W(mm) H(mm) Weight (kg/m) 600 800 1000 1200 1350 1500 1600 2000 Fig. A AL One 6×50 One 6×75 One 6×100 One 6×125 One 6×150 One 6×175 One 6×185 One 6×240 125 150 175 200 225 250 260 315 100 11.0 13.0 15.5 18.0 20.0 22.5 23.5 29.0 125 150 175 200 225 250 260 315 120 13.0 15.5 18.5 21.5 24.0 27.0 28.5 35.0 2500 3000 3500 Fig. B Two 6×150 Two 6×185 Two 6×240 450 520 630 100 40.0 46.0 57.5 450 520 630 120 48.0 56.0 69.5 4000 4500 5000 Fig. C Three 6×175 Three 6×185 Three 6×240 750 780 945 100 67.0 70.0 86.5 750 780 945 120 80.5 84.0 104.0 600 800 1000 1200 1350 1500 1600 2000 Fig. A CU One 6×40 One 6×50 One 6×75 One 6×100 One 6×125 One 6×125 One 6×150 One 6×185 115 125 150 175 200 200 225 260 100 14.5 16.5 21.5 27.0 32.0 32.0 37.5 44.5 115 125 150 175 200 200 225 260 120 17.5 20.5 27.0 33.5 40.5 40.5 47.0 56.5 2500 3000 3500 Fig. B Two 6×125 Two 6×150 Two 6×175 400 450 500 100 64.0 74.0 84.0 400 450 500 120 80.5 93.5 107.0 4000 4500 5000 5500 6500 Fig. C Three 6×125 Three 6×150 Three 6×175 Three 6×185 Three 6×240 600 675 750 780 945 100 95.5 110.0 127.0 133.0 160.0 600 675 750 780 945 120 120.0 140.0 160.5 169.0 200.0   external   5500A and 6500A applied only to Cu external Rated electric current (A) Busbar Flat Type Weight(kg/m) 3W 4W Fig 3W 4W W(mm) H(mm) W(mm) H(mm) 600 800 1000 1200 1350 1500 1600 2000 AL 145 170 195 220 245 270 280 335 150 145 170 195 220 245 270 280 335 170 Fig.E 20 23 26 29 32 35 37 44 22 26 30 33 37 40 42 50 2500 3000 3500 470 540 650 150 470 540 650 170 Fig. F 59 67 82 68 77 95 4000 4500 5000 770 800 965 150 770 800 965 170 Fig. G 95 99 120 109 113 139 600 800 1000 1200 1350 1500 1600 2000 CU 135 145 170 195 220 220 245 280 150 135 145 170 195 220 220 245 280 170 Fig. E 23 25 31 37 43 43 49 57 27 30 37 44 52 52 59 70 2500 3000 3500 420 470 520 150 420 470 520 170 Fig. F 82 93 105 98 113 128 4000 4500 5000 5500 6500 620 695 770 800 965 150 620 695 770 800 965 170 Fig.G 120 136 155 170 196 144 166 189 205 236
